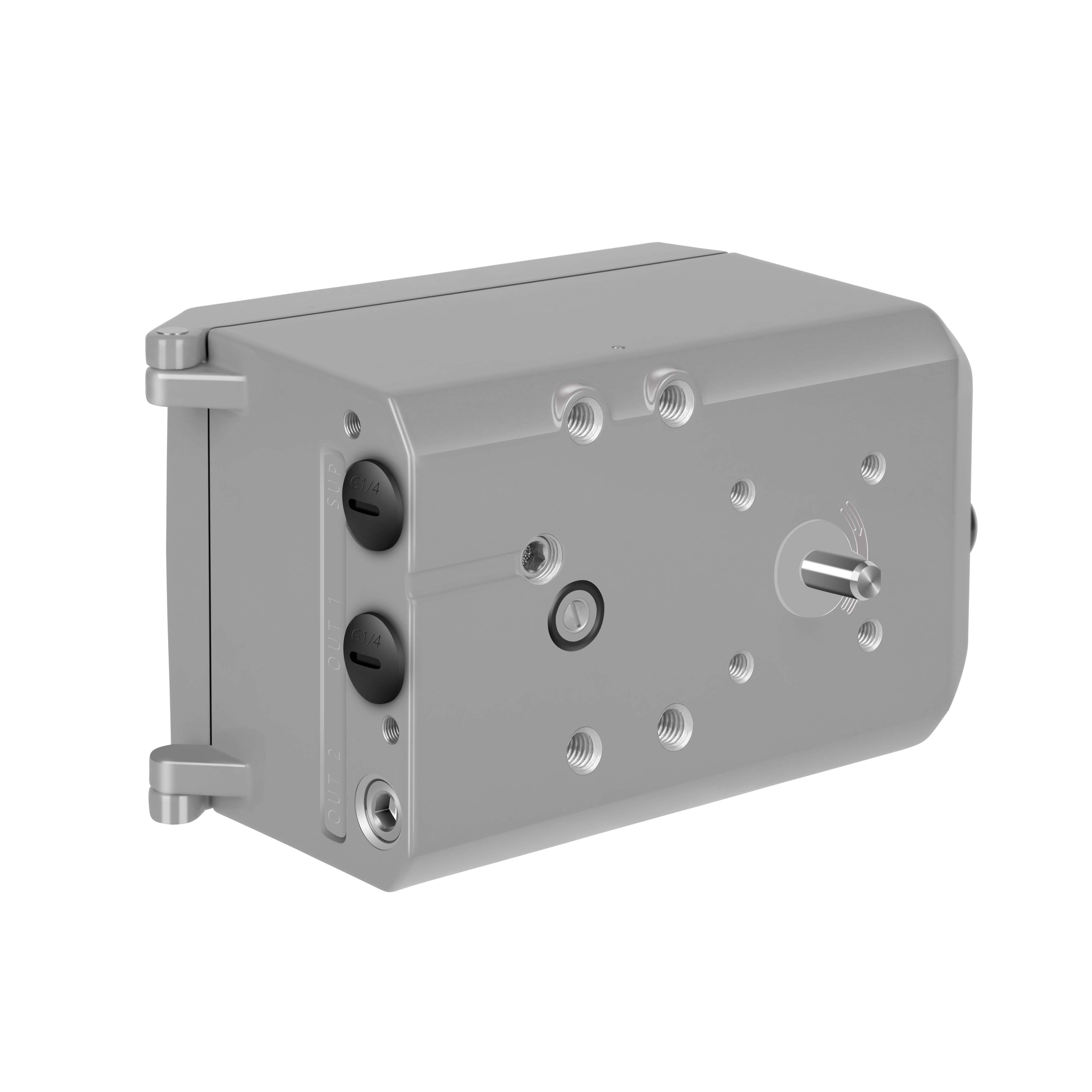

IP5500 series positioner is mounted on pneumatic actuators. It’s used to control air intake and exhaust of the pneumatic actuators to drive the valve position to the set point by calculating both data from 4-20mA DC signal and feedback position.

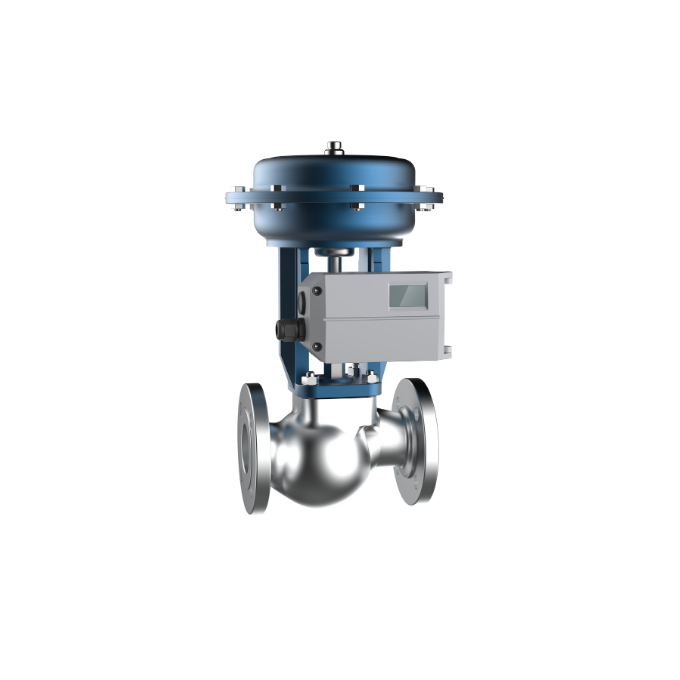

Normal linear（L）

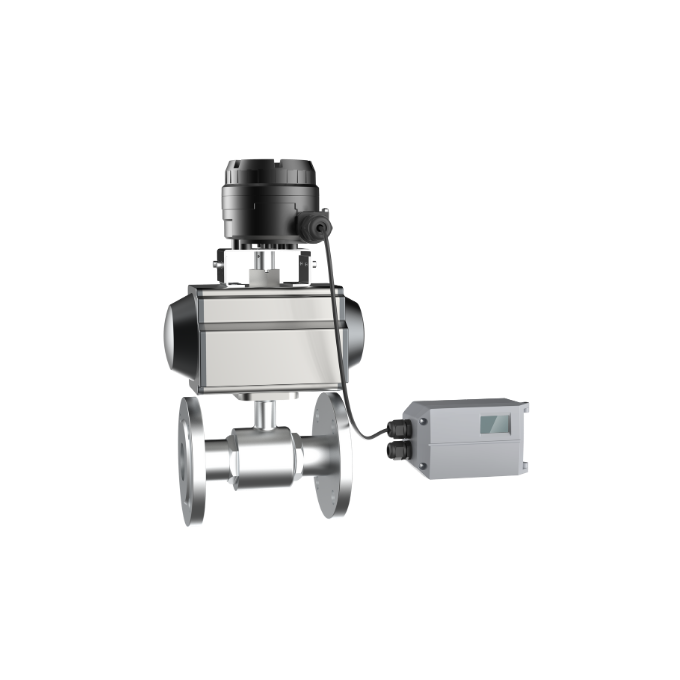

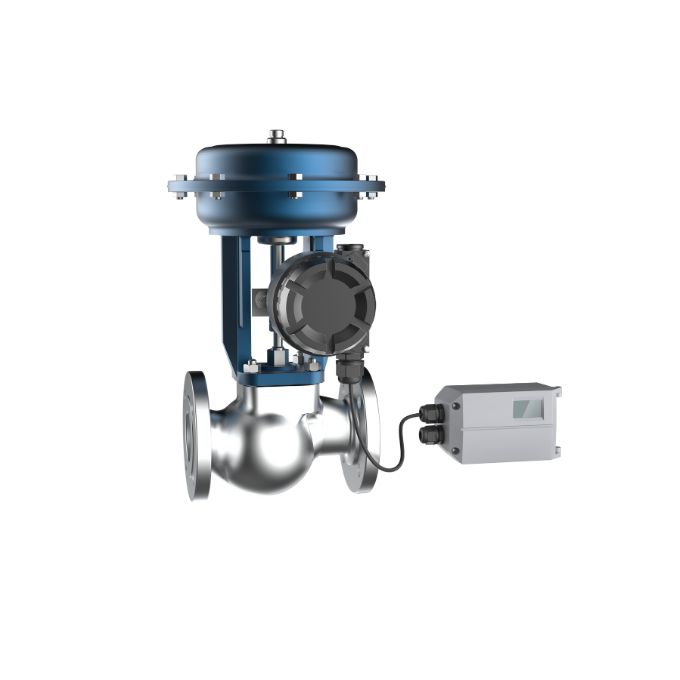

Remote linear（FL）
Normal rotary（R）
Remote rotary（FR）
Single acting（S）
Double acting（D）
No（0）
Yes（1）
No（0）
Linear Bracket（1）
Rotary Bracket（2）
No（0）
Yes（1）
Power off state option is Safe by default.
| Material | Aluminum |
| Power supply | 24V DC ±10% |
| Input signal | 4 – 20 mA DC |
| Stroke |
Linear stroke:10-100mm, Rotary stroke:30-100° |
|
Gas source requirement
|
Neutral gases, air DIN ISO 8573-1 Solid particle size and density Class 3 Dew point Class 3 Oil content Class 3 |
|
Ambient temperature |
-20°C ~ +70°C |
|
Vibration resistance |
0.15mm, 10Hz-60Hz, 20 cycle/axis 20m/s2, 60Hz-500Hz, 20 cycle/axis Recommended range for control valve≤ 20m/s2, no resonance peak |
|
Supply pressure |
0.14-0.7MPa |
|
Flow |
75L/min （Sup=0.14MPa） |
|
Basic error |
≤ 1.0% |
|
Hysteresiserror |
≤ 1.0% |
|
Electrical connection |
M20×1.5 |
|
Pneumatical connection |
G1/4 |
|
Protection class |
IP66 |

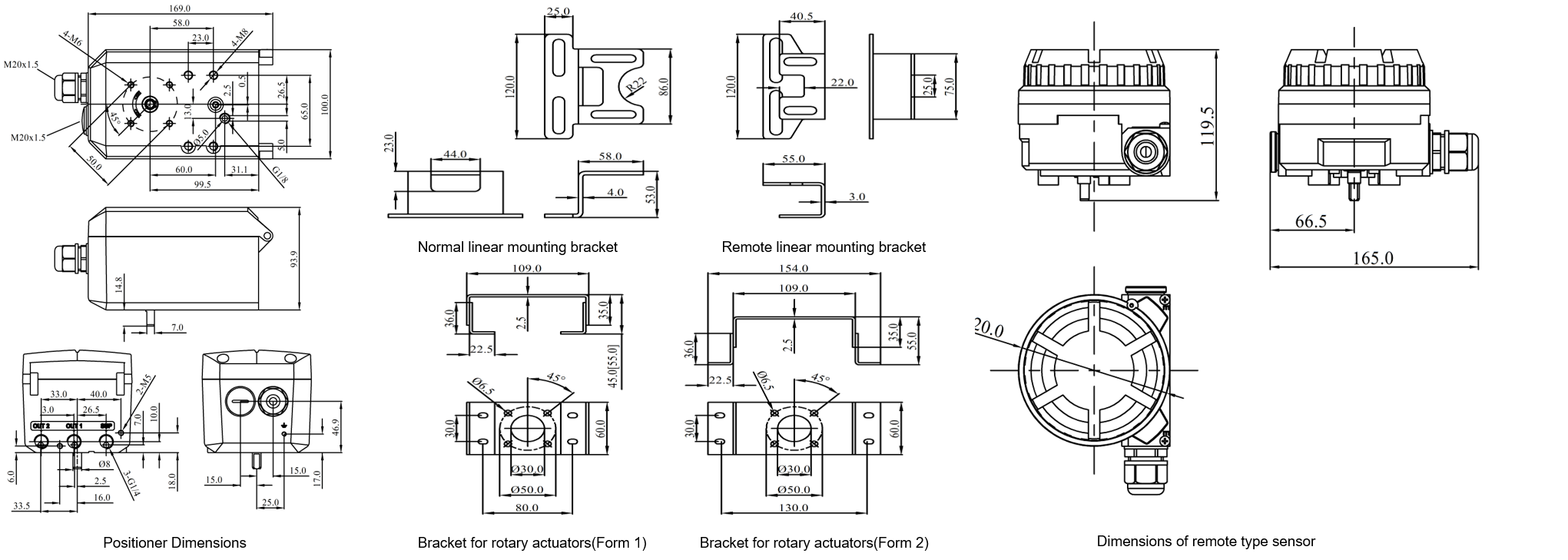

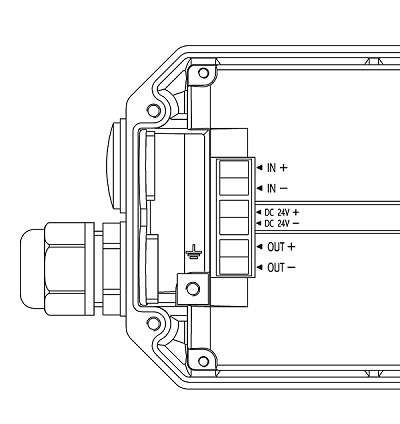

IN+
4-20mA set-point signal +
IN-
4-20mA set-point signal -
DC 24V +
Power supply DC 24V +
DC 24V -
Power supply DC 24V -
OUT
4-20mA feedback signal +
OUT-
4-20mA feedback signal -
| Pin | Description |
|
SUP |
Air supply enter |
|
OUT1 |
Pilot air outlet 1 |
|
OUT2 |
Pilot air outlet 2 |
