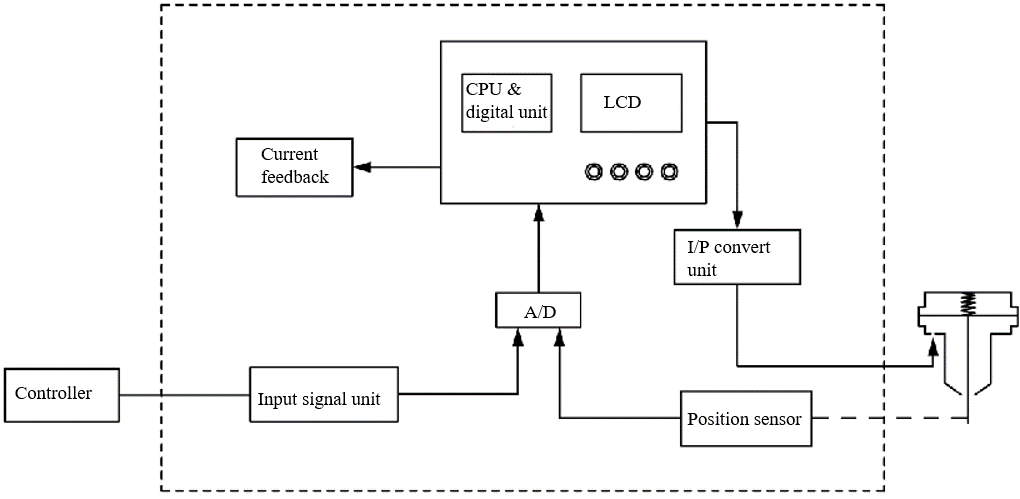

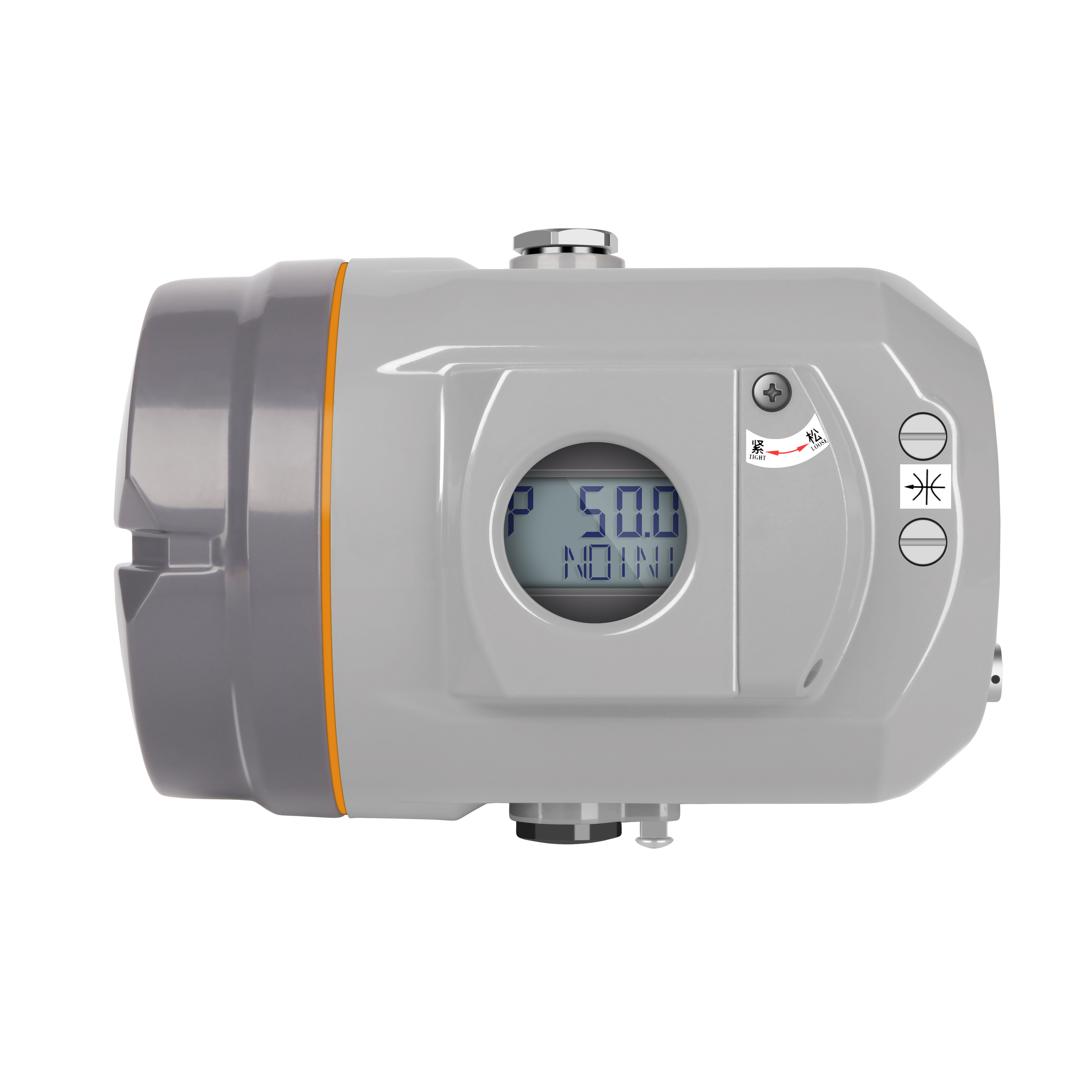

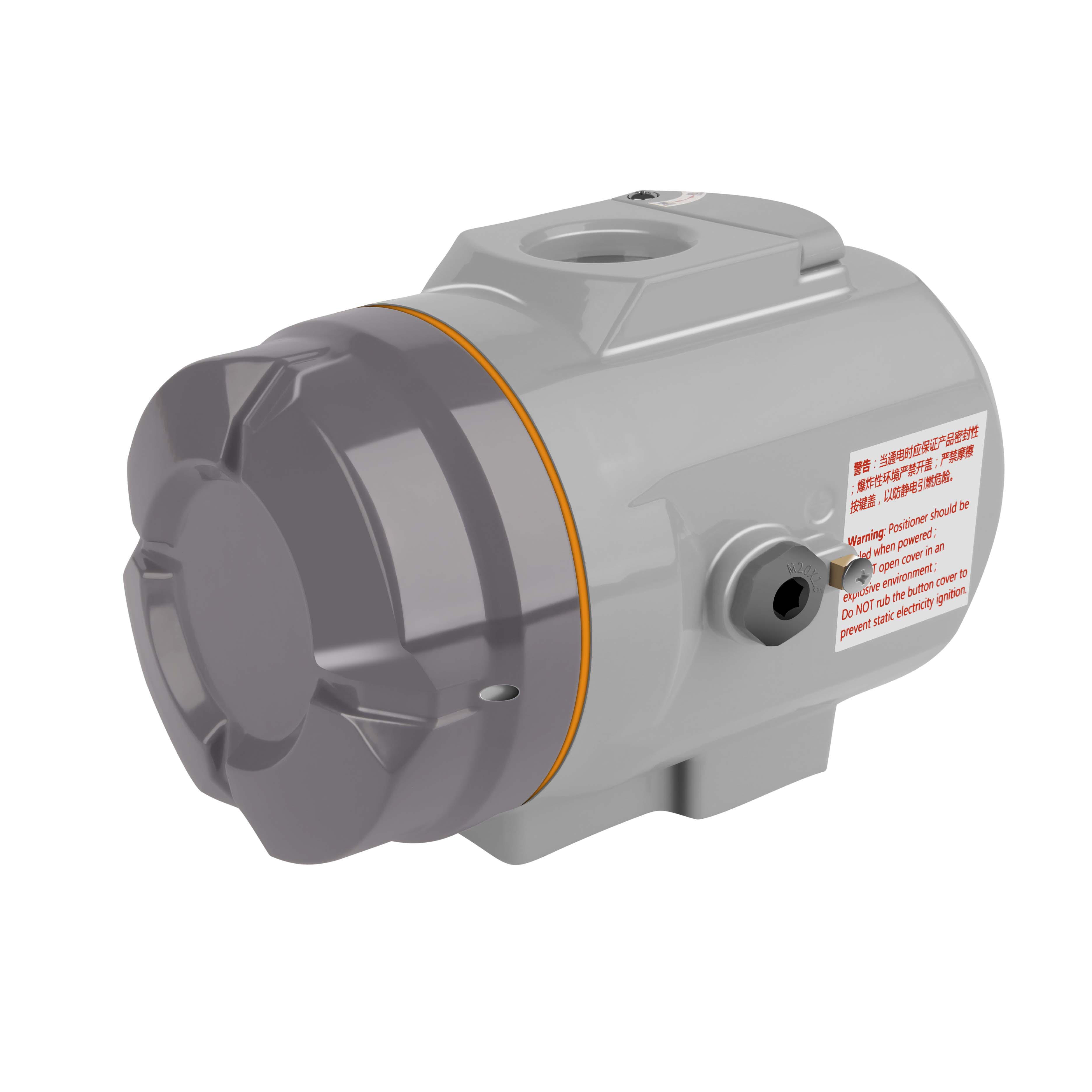

IP6000 series flameproof positioner is mounted on pneumatic actuators. It's used to control air intake and exhaust of the pneumatic actuators to drive the valve position to the set point by calculating both data from 4-20mA DC signal and feedback position.
Normal linear（L）
Remote linear*（FL）
Normal rotary（R）
Remote rotary*（FR）
Separate*（S）
Single acting（S）
Double acting（D）
Ex db IIC T6 Gb；Ex tb IIIC 85℃ Db（d）
Ex db I Mb（k）
No（0）
Yes（1）
No（0）
Yes（1）
No（0）
Linear（1）
Rotary（2）
No（0）
Yes（1）
Safe（S）
Freeze（F）
-20℃（N）
-40℃（L）
In the installation type options, the options marked with * (FL, FR and S) do NOT support explosion proof option d (Ex d IIC T6 Gb).
* marked option S (separate type) does NOT support the Min. ambient temperature option L (-40℃).
|
Enclosure material |
Aluminum |
| Pressure gauge block material |
Aluminum, anodized |
| Input signal |
Input resistance: 120Ω Limit voltage: 28V |
|
Output signal |
Feedback type: 2-wire 4~20mA signal, internal resistance 120Ω |
| Digital communication protocol |
HART 7 |
| Minimum operating current | 3.8mA |
| Steady state air consumption | ≤ 0.4 L/min |
| Stroke range |

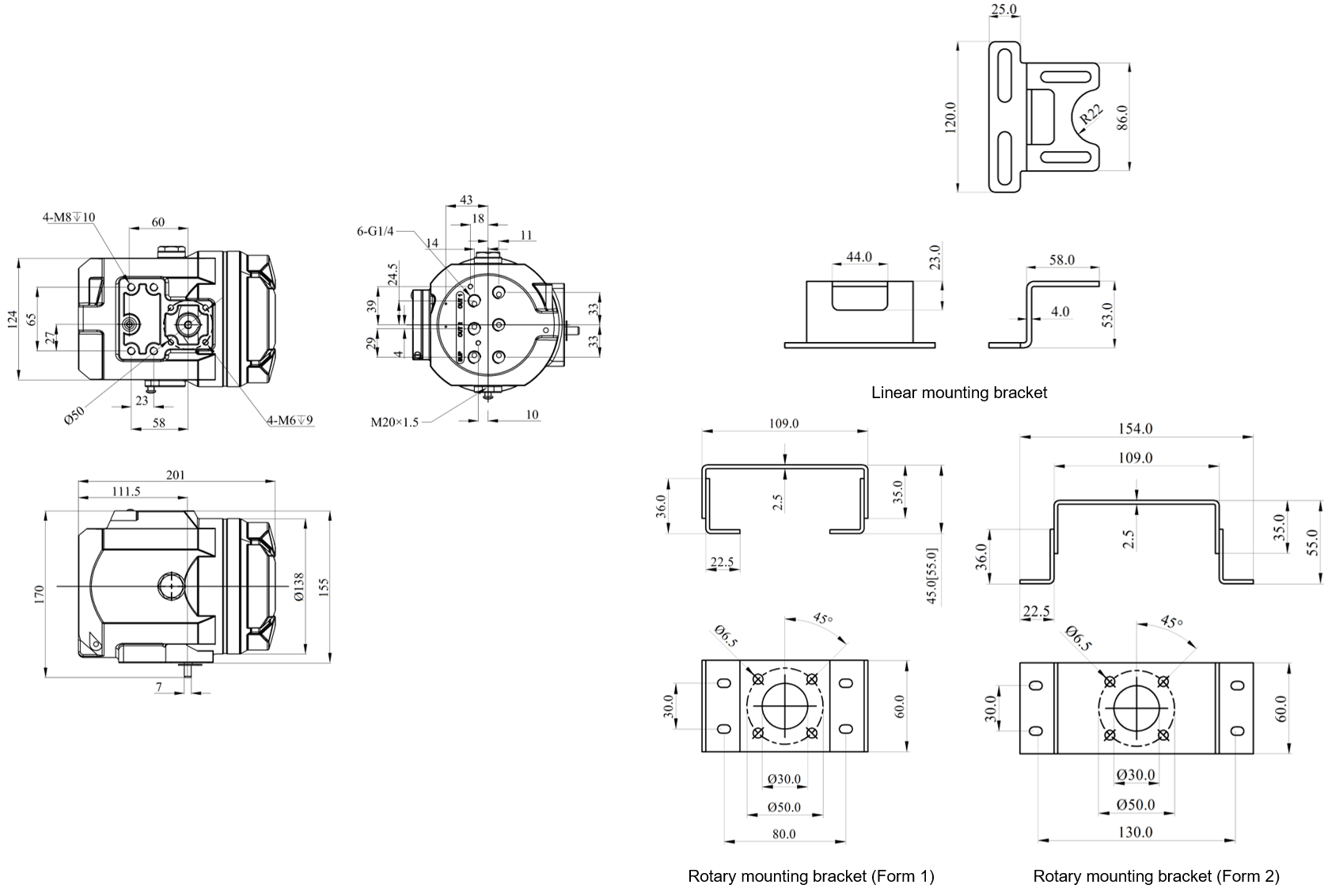

Default linear type: 10~100mm Default rotary type: 30~100° Separate type: 5~50mm Optional mounting bracket: Hard connection or soft connection Note: The stroke range of remote type is the same as that of default type
|
| Pneumatic data |
Air quality meets ISO 8573-1 standard Pressure range：1.4~7bar(20.3~101.5psi) Solid particle size and density: Grade 3 Pressure dew point: Class 3 (minimum 20K (36°F) lower than the ambient temperature) Oil content: Class 3 |
| Vibration resistance |
0.15mm, 10Hz-60Hz, 20 cycle/axis 20m/s2, 60Hz-500Hz, 20 cycle/axis Recommended range for control valve ≤20m/s2, no resonance peak |
| Electrical connection | M20×1.5 |
| Pneumatical connection | G1/4 |
| Protection class | IP67 |
|
Basic error & Hysteresis error |
≤ 1% |
| Ambient temperature |
Ex d default type: -20 ℃ ~ +60 ℃(CCC)，-20℃ ~ +40℃(EAC-T6) Ex d low temperature type : -40℃ ~ +60 ℃(CCC)，-55℃ ~ +40℃(EAC-T6)
|
|
Explosion-proof grade |
Ex db Ⅰ Mb Ex db ⅡC T6 Gb Ex tb ⅢC T85℃ Db |
|

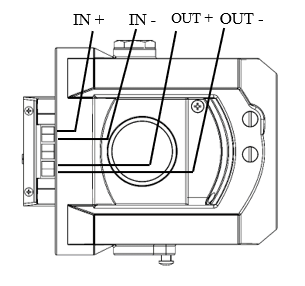

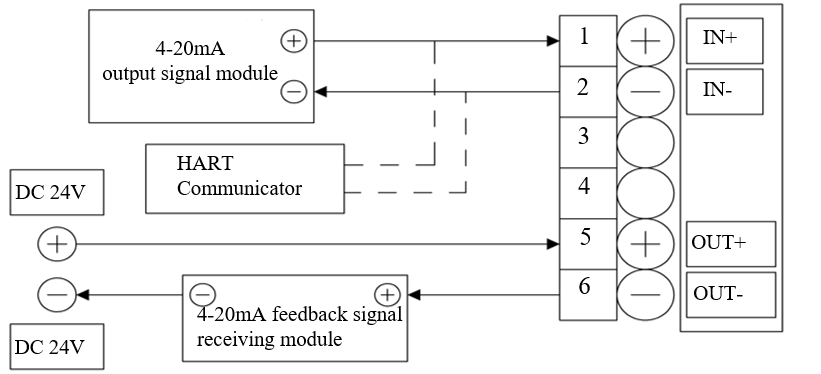

Connection |
Description |
| IN+ |
4-20 mA input signal + |
|
IN- |
4-20 mA input signal - |
|
OUT+ |
Feedback signal module 18-30 V DC+ |
|
OUT- |
Feedback signal module 4-20 mA output |

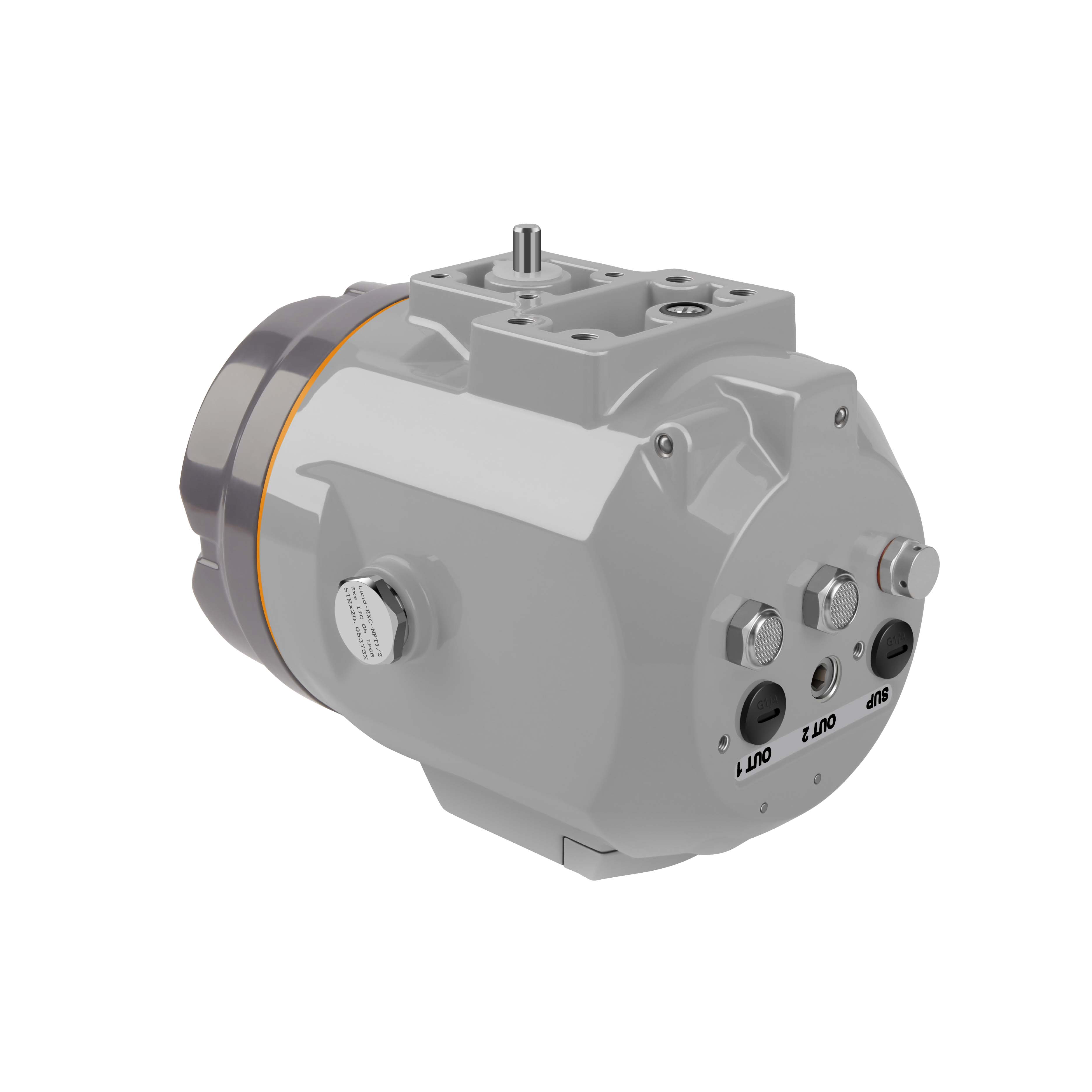

| Connection | Description |
|
SUP |
Air supply input |
|
OUT1 |
Pilot air outlet 1 |
|
OUT2 |
Pilot air outlet 2 |
